Aircraft Design
Fuel-Efficiency
Flight Deck™
Aircraft Design
5,300 NM
(9,816 km) Maximum Range2
UP TO 3
Living Areas
0.925
Maximum Mach

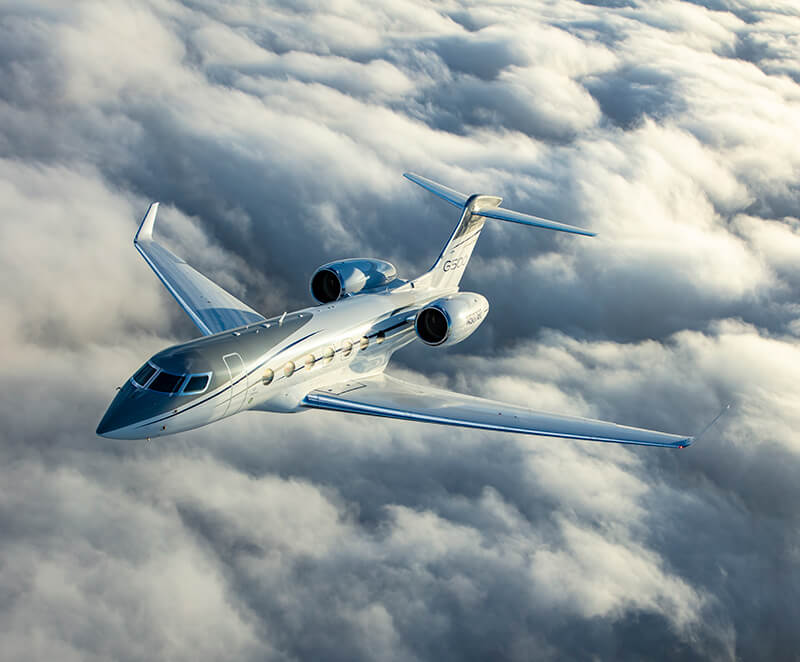

SKY CHASER

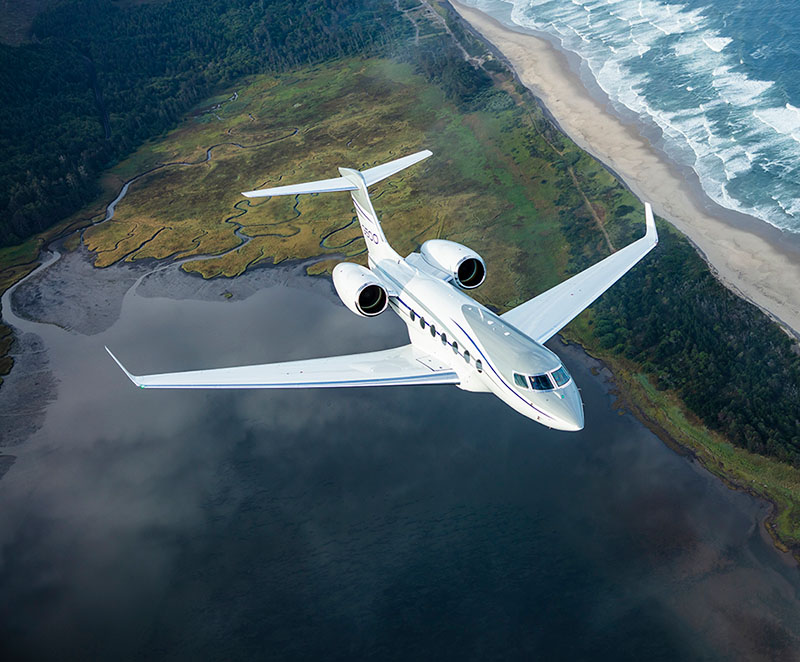

The long-range G500 gives you back time with a high-speed cruise of Mach 0.90. Fewer flight hours means longer periods between scheduled maintenance visits, higher potential aircraft value and fresher crews.
CLEAN-SHEET DESIGN DELIVERS THE LATEST ADVANCES IN SAFETY AND PERFORMANCE
BOLD FRONTIERS
See how far you can fly in the G500 and compare its range to other Gulfstream aircraft.
1NBAA IFR theoretical range at Mach 0.85 with 8 passengers, 4 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors. All G800 performance is based on preliminary data and subject to change. 2NBAA IFR theoretical range at Mach 0.85 with 8 passengers, 3 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors. 3NBAA IFR theoretical range at Mach 0.85 with 8 passengers, 3 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors. All performance is based on preliminary data and subject to change. 4NBAA IFR theoretical range at Mach 0.80 with 4 passengers, 2 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors. 5NBAA IFR theoretical range at Mach 0.90 with 8 passengers, 4 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors. All G800 performance is based on preliminary data and subject to change. 6NBAA IFR theoretical range at Mach 0.90 with 8 passengers, 3 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors. 7NBAA IFR theoretical range at Mach 0.88 with 8 passengers, 3 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors. All performance is based on preliminary data and subject to change. 8NBAA IFR theoretical range at Mach 0.84 with 4 passengers, 2 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors.
BOUNDLESS POTENTIAL

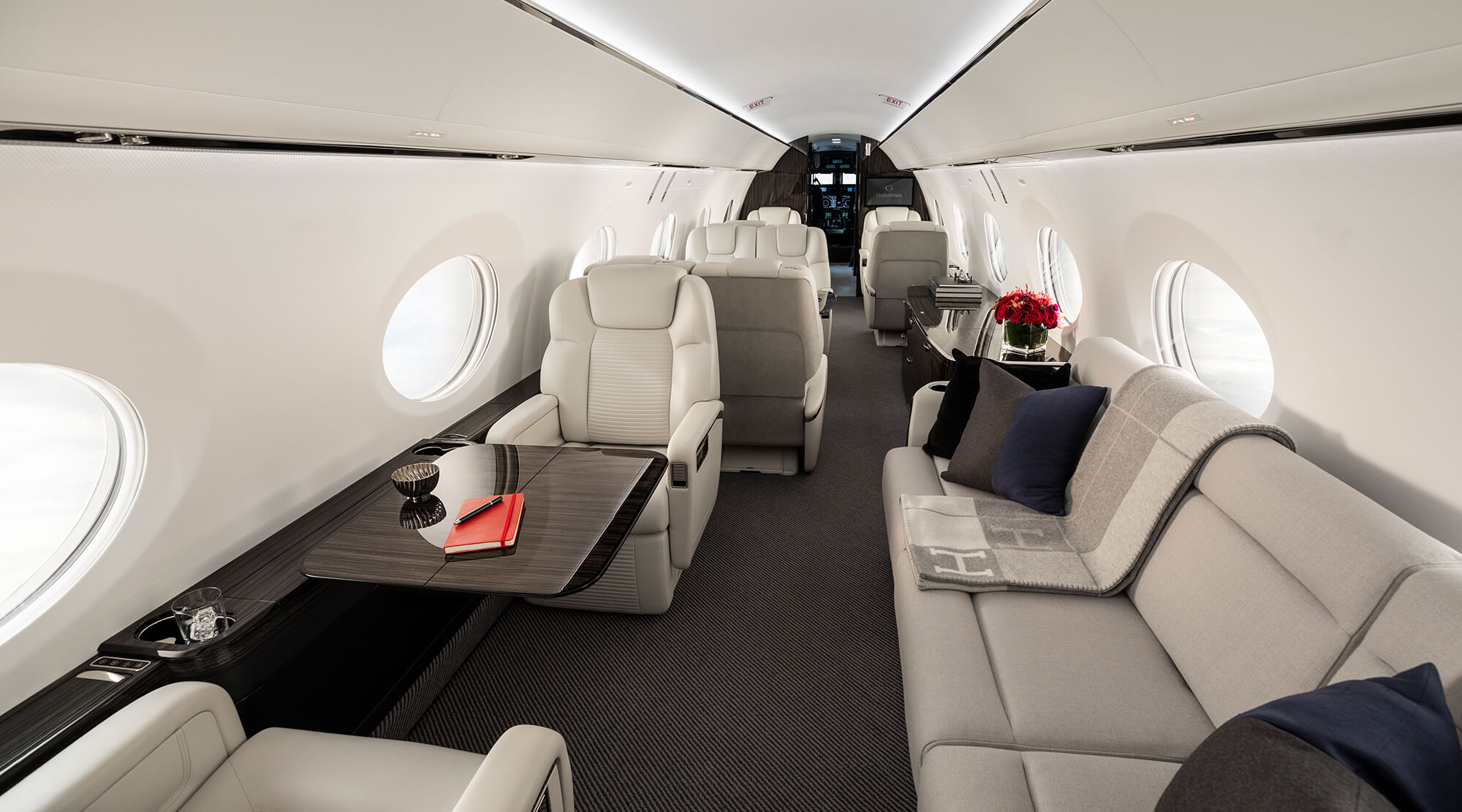

The tall and wide G500 cabin offers great flexibility, including the option of a forward or an aft galley and an aft stateroom lit by four panoramic oval windows. You can stroll down a generous aisle or recline in all-new seats. Tables seat three across for meals or meetings.
Relax
Designed to be the quietest in business aviation, the G500 cabin provides a peaceful environment.
Thrive
Arrive alert and refreshed thanks to 100% fresh air and an ultralow cabin altitude.
Bask
Fourteen windows—the largest in business aviation—offer abundant natural light and sweeping views of the world.
OPTIMIZED FOR COMFORT
Bring your vision to life with comfortable configurations that can seat up to 19 passengers and sleep up to 8.
AS SHOWN:
Living Areas
Passengers
Sleeps
Forward Galley
Aft Galley
AS SHOWN:
Living Areas
3
Passengers
UP TO 13
Sleeps
UP TO 6
SUSTAINABILITY ADVANCEMENTS
Discover next-generation performance and efficiency. Outfitted with high-thrust engines, Gulfstream’s aerodynamic wing and advanced avionics, the G500 is 33% more fuel-efficient than previous-generation aircraft.9
Gulfstream leads the industry in sustainability innovation, from new aircraft technology to environmentally responsible practices.
Safety Synchronized

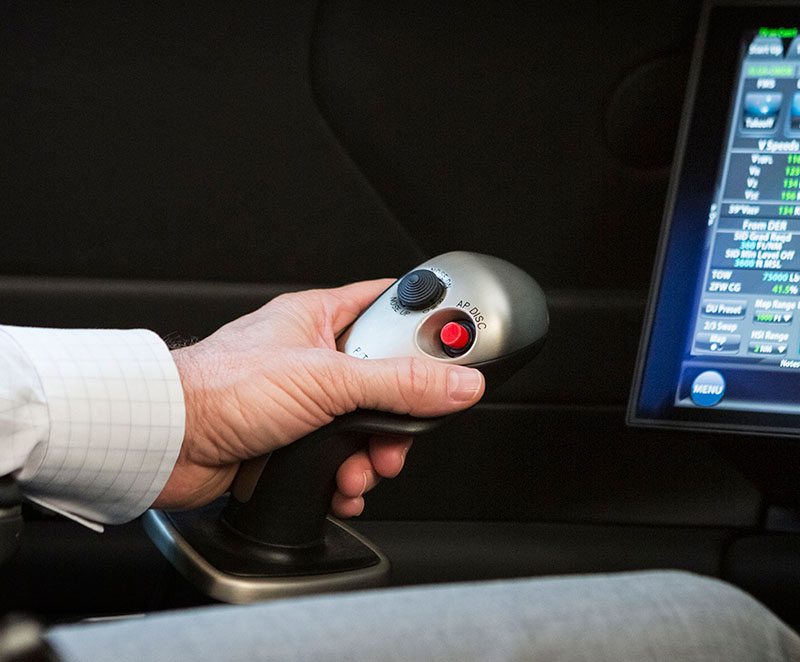

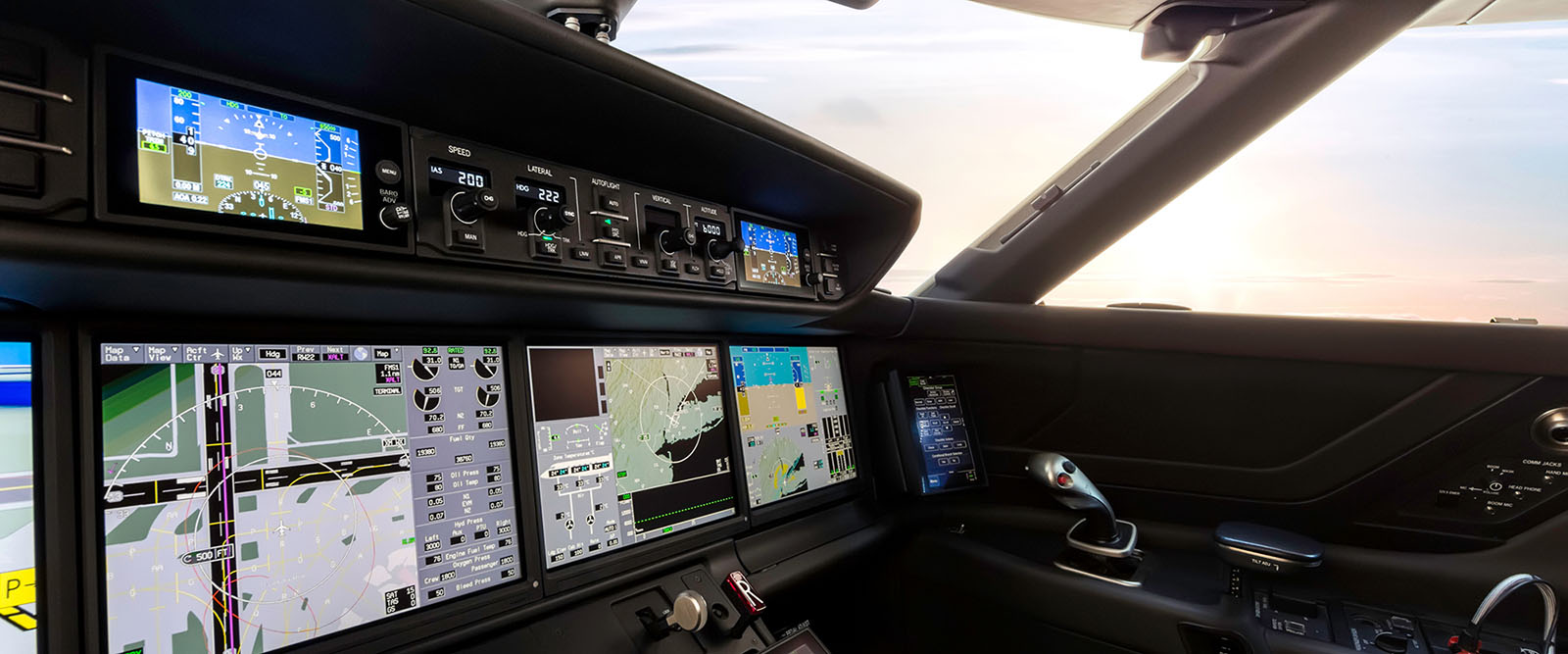

The Symmetry Flight Deck—pioneered by the G500—features active control sidesticks that increase visual and tactile feedback between pilots. Ten touch-screen displays and Phase-of-Flight intelligence enhance safety, operational efficiency and redundancy while providing intuitive access to essential information.
FEEL THE FUTURE TAKE FLIGHT
SUPERIOR SIGHTLINES
Our Enhanced Flight Vision System (EFVS) allows authorized pilots to land without natural vision in low-visibility conditions, increasing access to airports and reducing go-arounds. A Synthetic Vision-Primary Flight Display, featuring 3D graphics of terrain and runways, further boosts pilots’ situational awareness.
Technical Specifications
Performance
Maximum Range1
5,300 nm
High-Speed Cruise
Mach 0.90
Long-Range Cruise
Mach 0.85
Maximum Operating Mach Number (Mmo)
Mach 0.925
Takeoff Distance (SL, ISA, MTOW)
5,300 ft
Initial Cruise Altitude
43,000 ft
Maximum Cruise Altitude
51,000 ft
1NBAA IFR theoretical range at Mach 0.85 with 8 passengers, 3 crew and NBAA IFR reserves. Actual range will be affected by ATC routing, operating speed, weather, outfitting options and other factors.
Cabin
Living Areas
Up to 3
Seats
Up to 19
Sleeps
Up to 8
Cabin Altitude
3,255 ft at 41,000 ft
Gulfstream Panoramic Oval Windows
14
Galley
Forward or Aft
Vacuum Lavatory
Forward and Aft
Weights
Maximum Takeoff
79,600 lb
Maximum Landing
64,350 lb
Maximum Zero Fuel
52,100 lb
Basic Operating (including 3 crew)2
46,850 lb
Maximum Payload2
5,250 lb
Maximum Payload/Full Fuel2
2,900 lb
Maximum Fuel
30,250 lb
2Stated weights are based on theoretical standard outfitting configurations. Actual weights will be affected by outfitting options and other factors.
Systems
Avionics
Gulfstream Symmetry Flight Deck™
Engines
Two Pratt & Whitney PW814GA
Rated Takeoff Thrust (each)
15,144 lb
Measurements
Finished Cabin Height
6 ft 2 in
Finished Cabin Width
7 ft 7 in
Cabin Length (excluding baggage)
41 ft 6 in
Total Interior Length
47 ft 7 in
Cabin Volume
1,715 cu ft
Baggage Compartment Volume
175 cu ft
Exterior Height
25 ft 6 in
Exterior Length
91 ft 2 in
Overall Wingspan
86 ft 4 in
